ADC-FMC

ADC-FMC

Specifications

  • Four high speed ADC port (Connected to 4 SMA connector)
  • 14-bit resolution and data rate up to 125 MSPS
  • Default output of onboard clock generator Si5340B is 125MHz
  • Selection of ADC reference clock: on-board clock generator, FPGA mainboard, or SMA connector
  • FMC interface (VITA 57.1 Compliant), VADJ = 1.8V

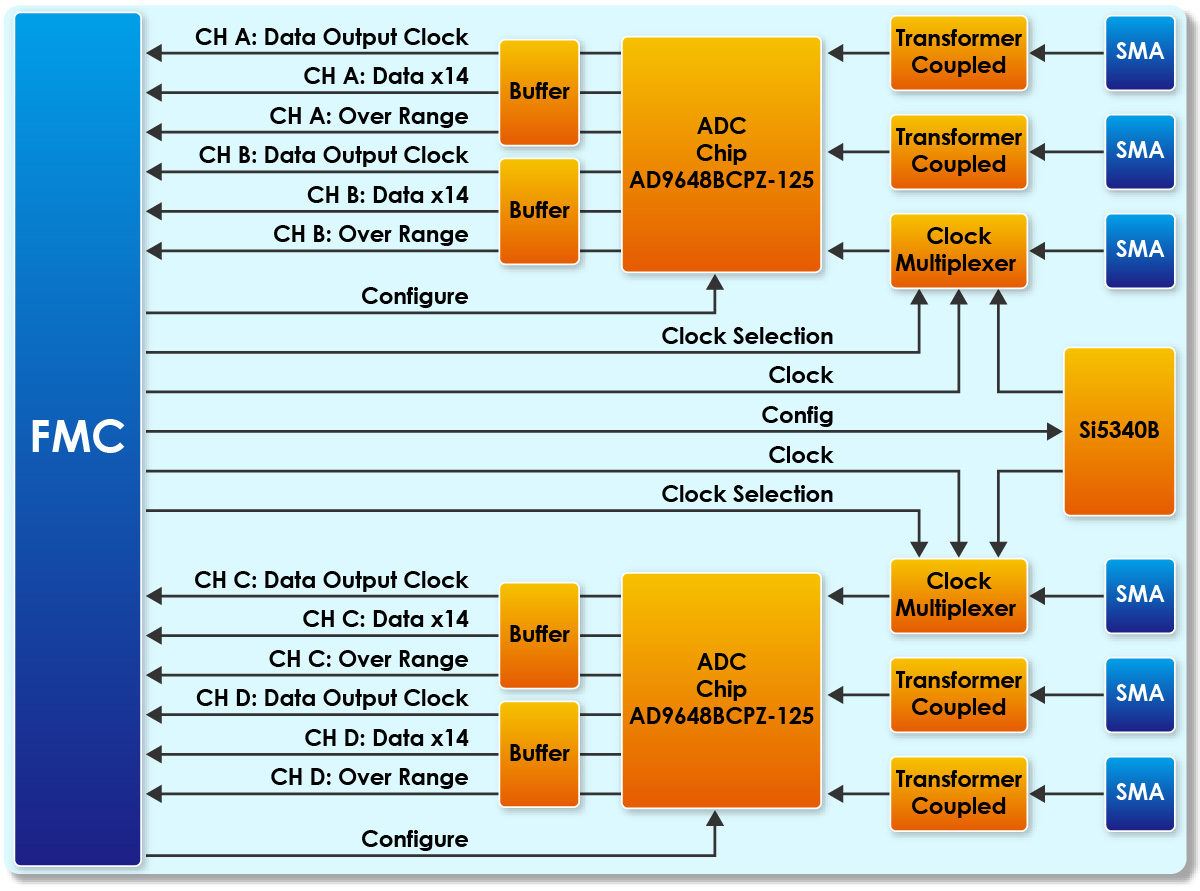

Block-Diagram



ADC Input Configuration

  • Configure: Differential Transformer-Coupled
  • Input Voltage Range: 2.0V Peak-to-Peak

Connectivity

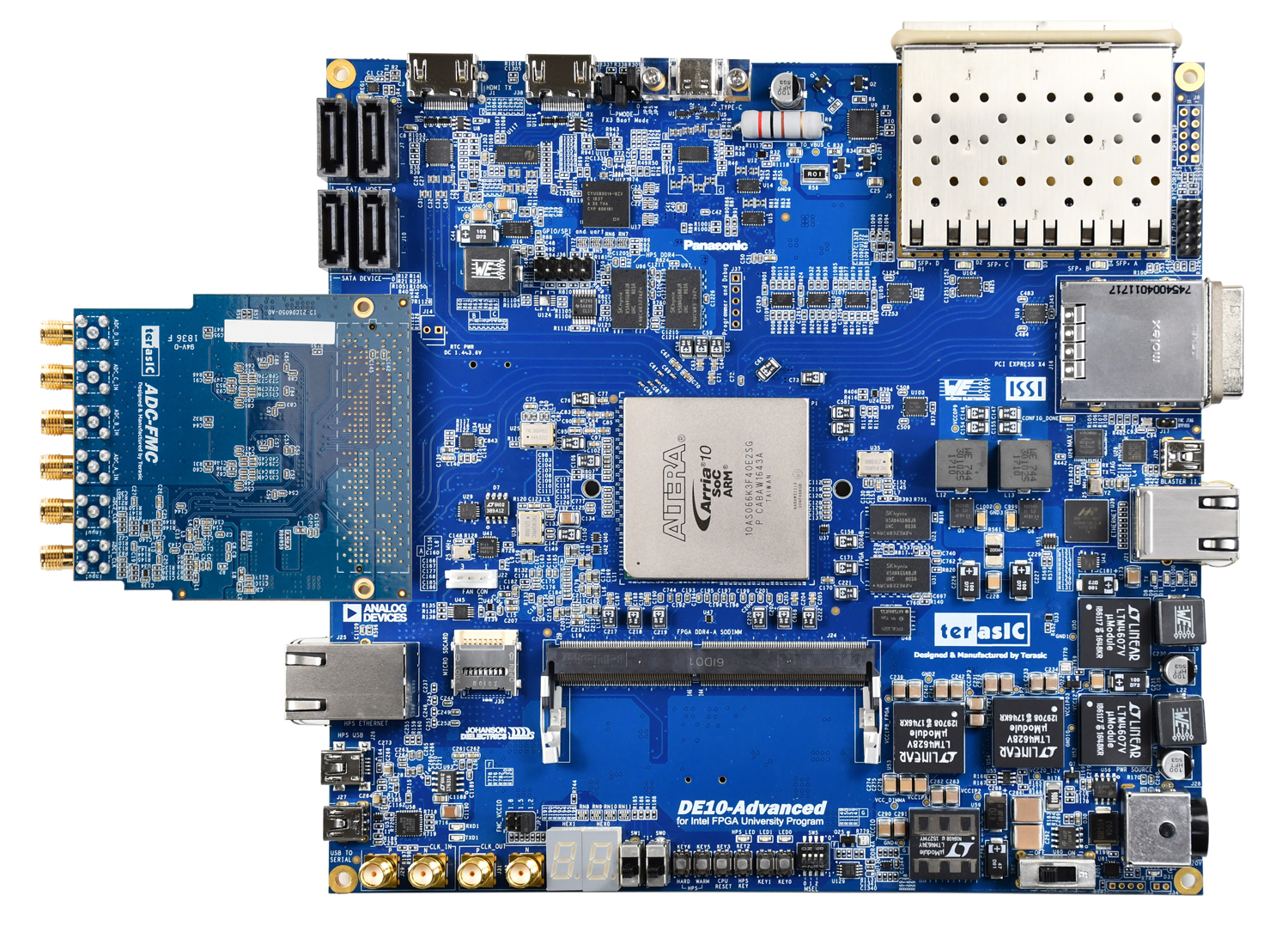

  • Connect With Apollo S10 SoM

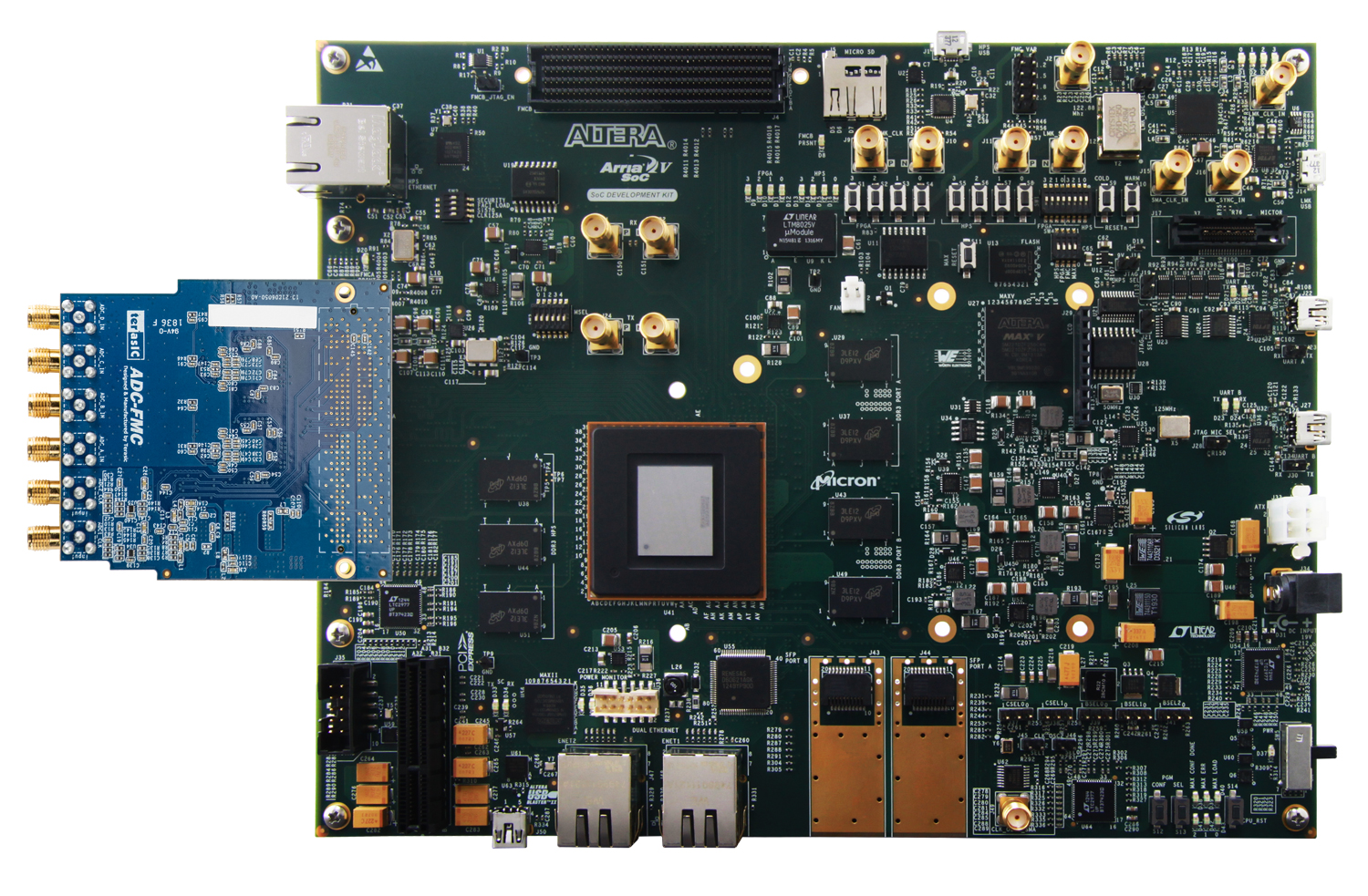

  • Connect With Intel A5SoC

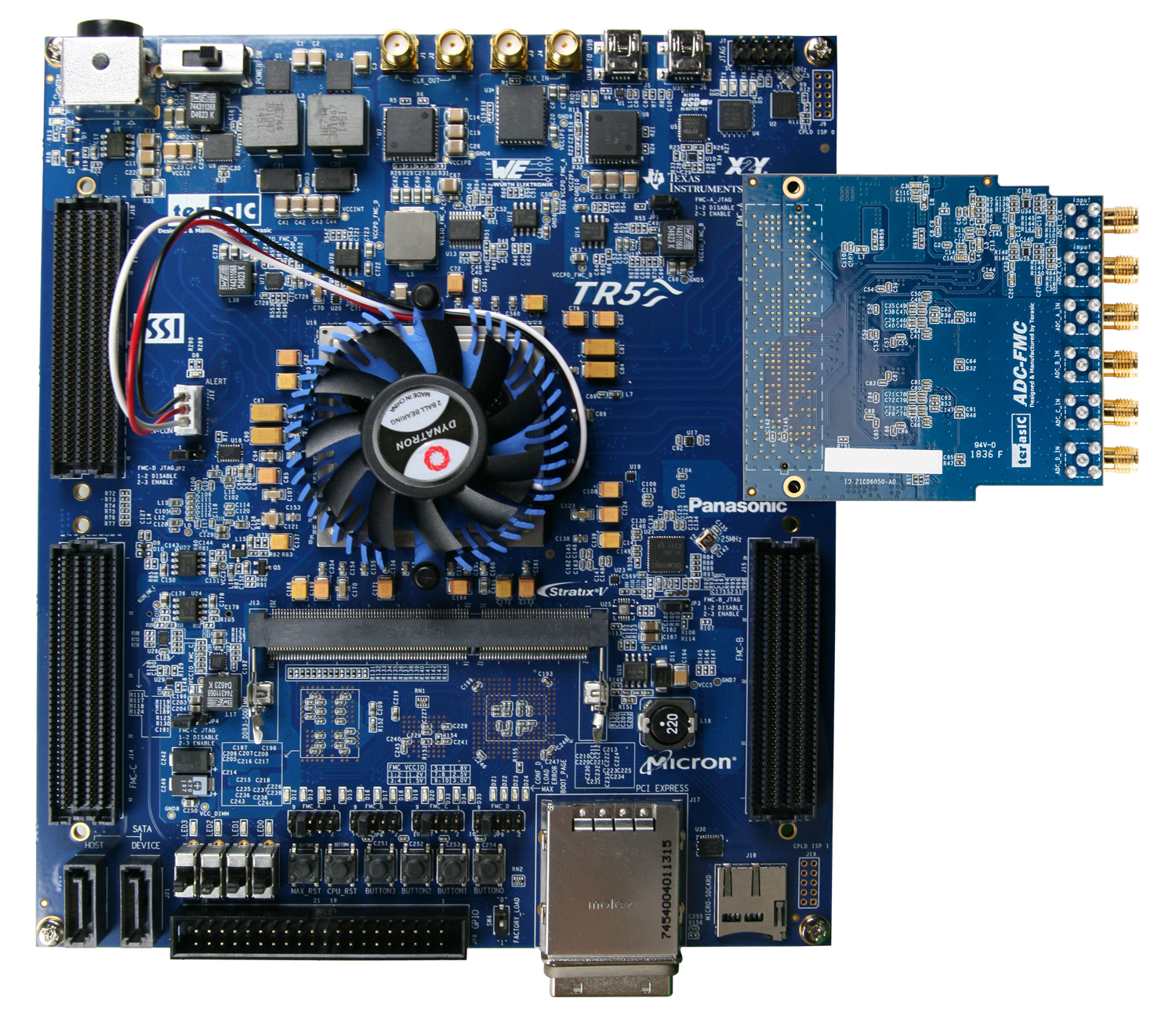

  • Connect With Terasic TR5

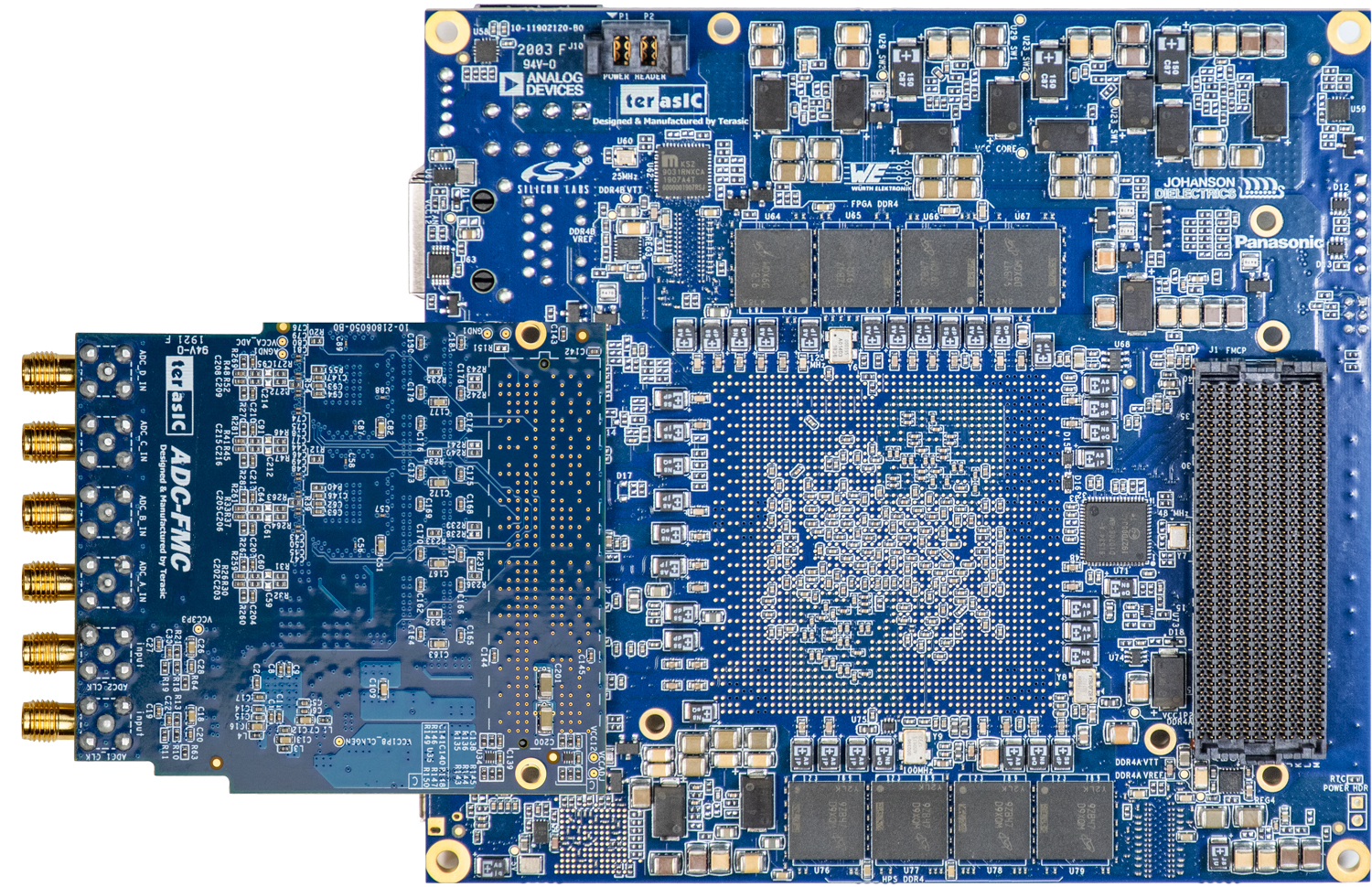

  • Connect With  HAN Pilot Platform
