Features

• Convert FPGA transceiver channels to SMA connectors through FMC interface
• Support maximum 4 transceiver channels (Depend on the FPGA host board)
• SMA connectors for external clock input
• Two 2x6 TMD( Terasic Mini Digital ) Expansion Headers (since board version Rev.C)

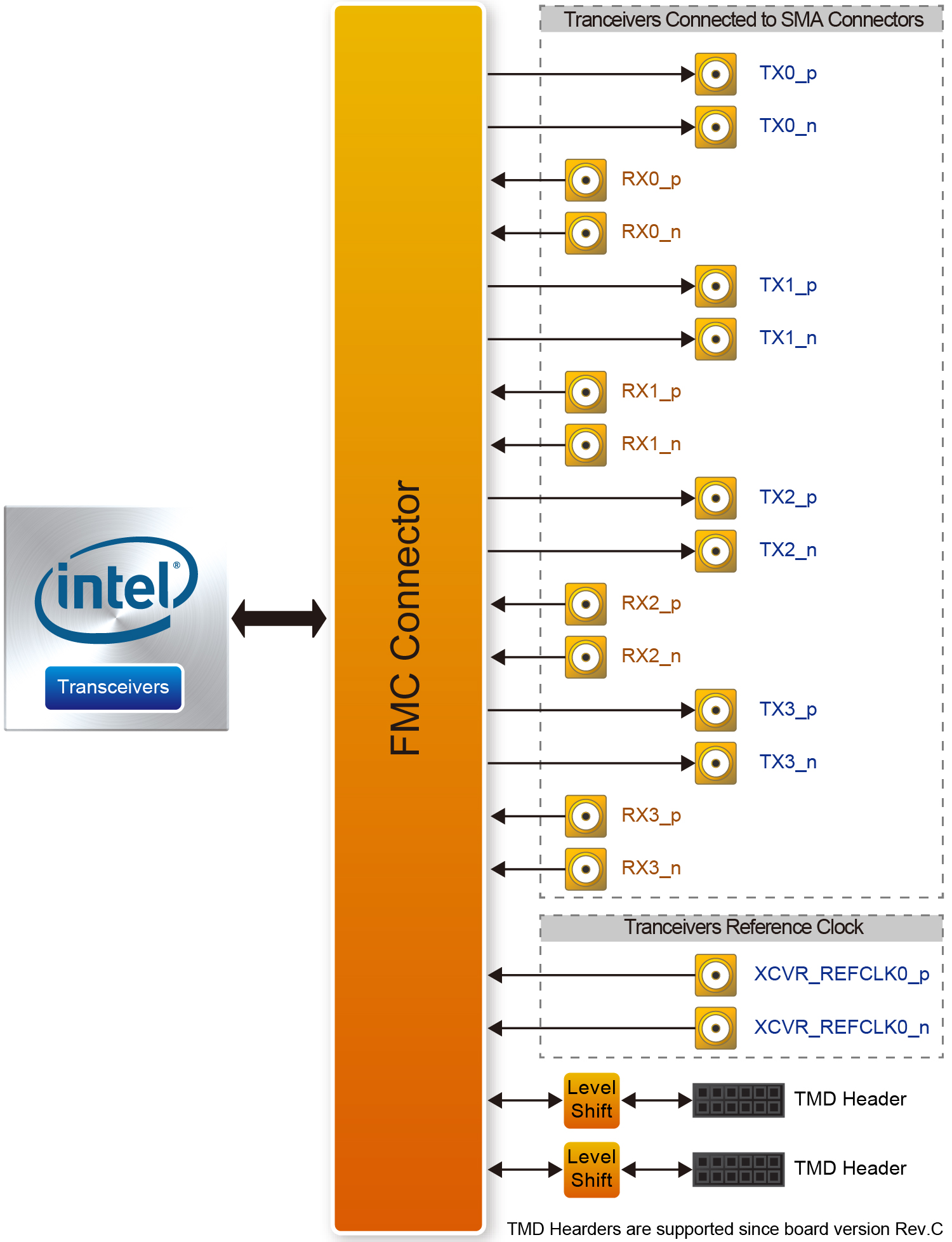

Block Diagram

Connectivity

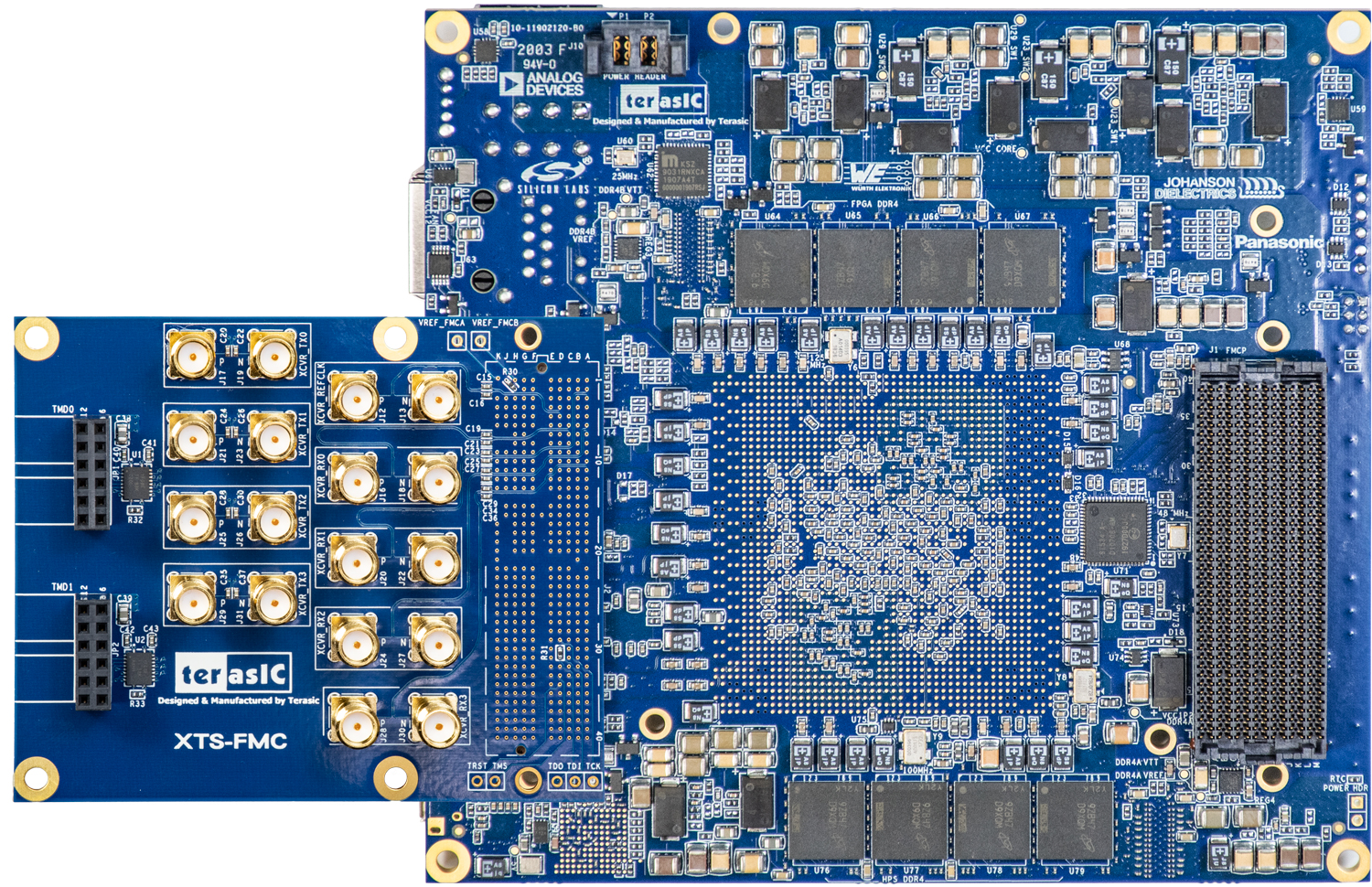

• The XTS-FMC Card connects with Apollo S10 SoM

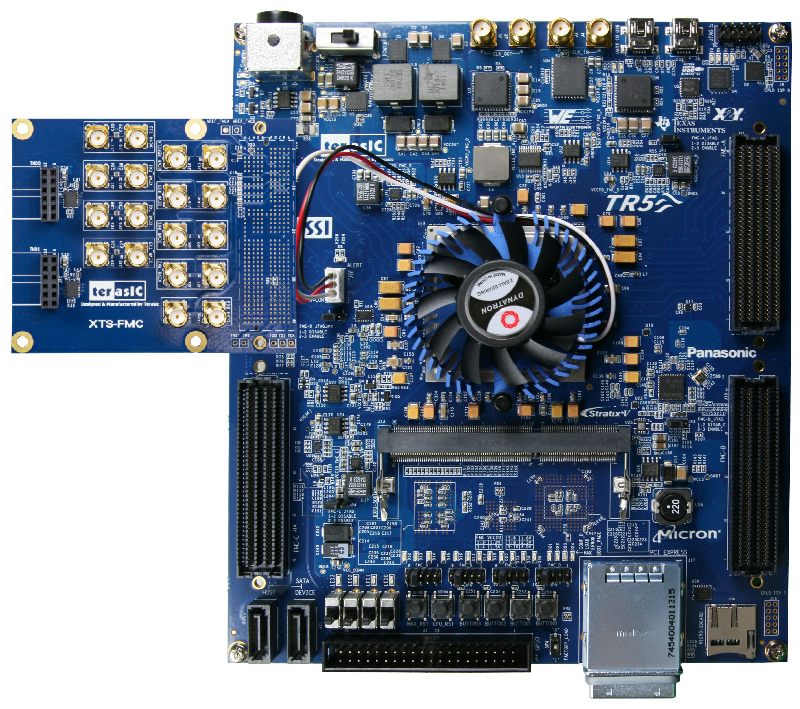

• The XTS-FMC Card connects with Terasic TR5 FPGA Board

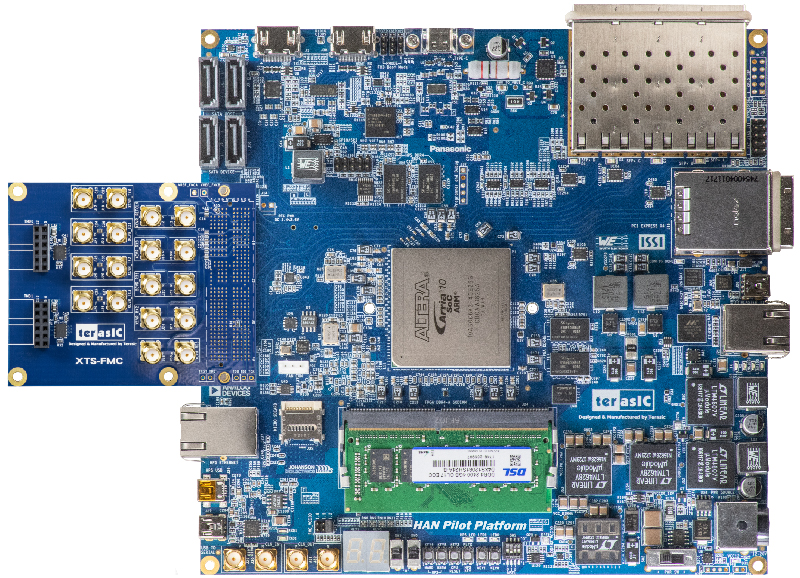

• The XTS-FMC Card connects with Terasic HAN Pilot Platform

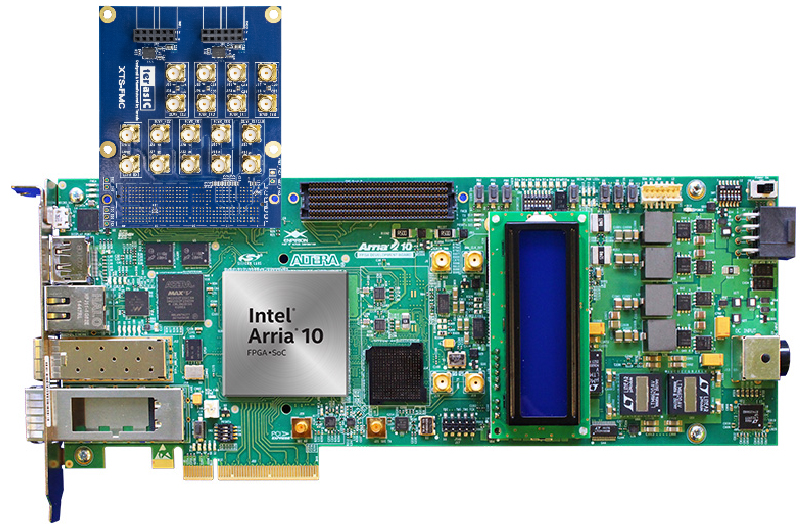

• The XTS-FMC Card connects with Intel A10GFP FPGA Board

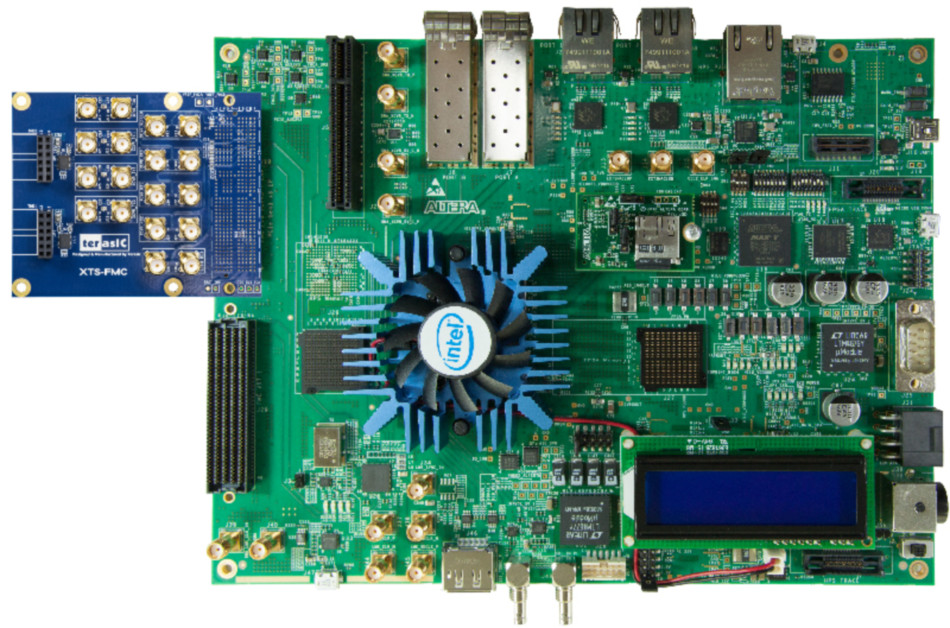

• The XTS-FMC Card connects with Intel A10SoC FPGA Board
