Accessories Extras OCXO Timing Board






OTB

OCXO Timing Board

Features:

  • Precision Clock:
    • Clock Type: OCXO
    • Frequency: 30.72MHz
    • IO Standard: 2.5V
    • Frequency Stability: +/-10ppb
    • Datasheet (hyper link to download OCXO datasheet)
  • Clock output interface: SMA
  • Power Interface: Power from 2x5 JTAG Header

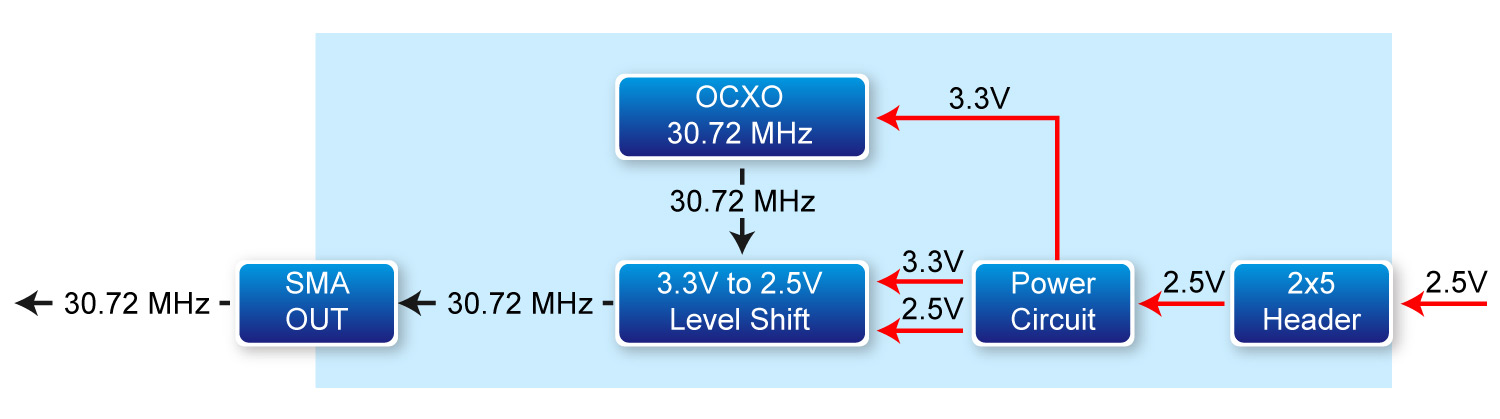

Block Diagram:


Integration with DE5-Net:

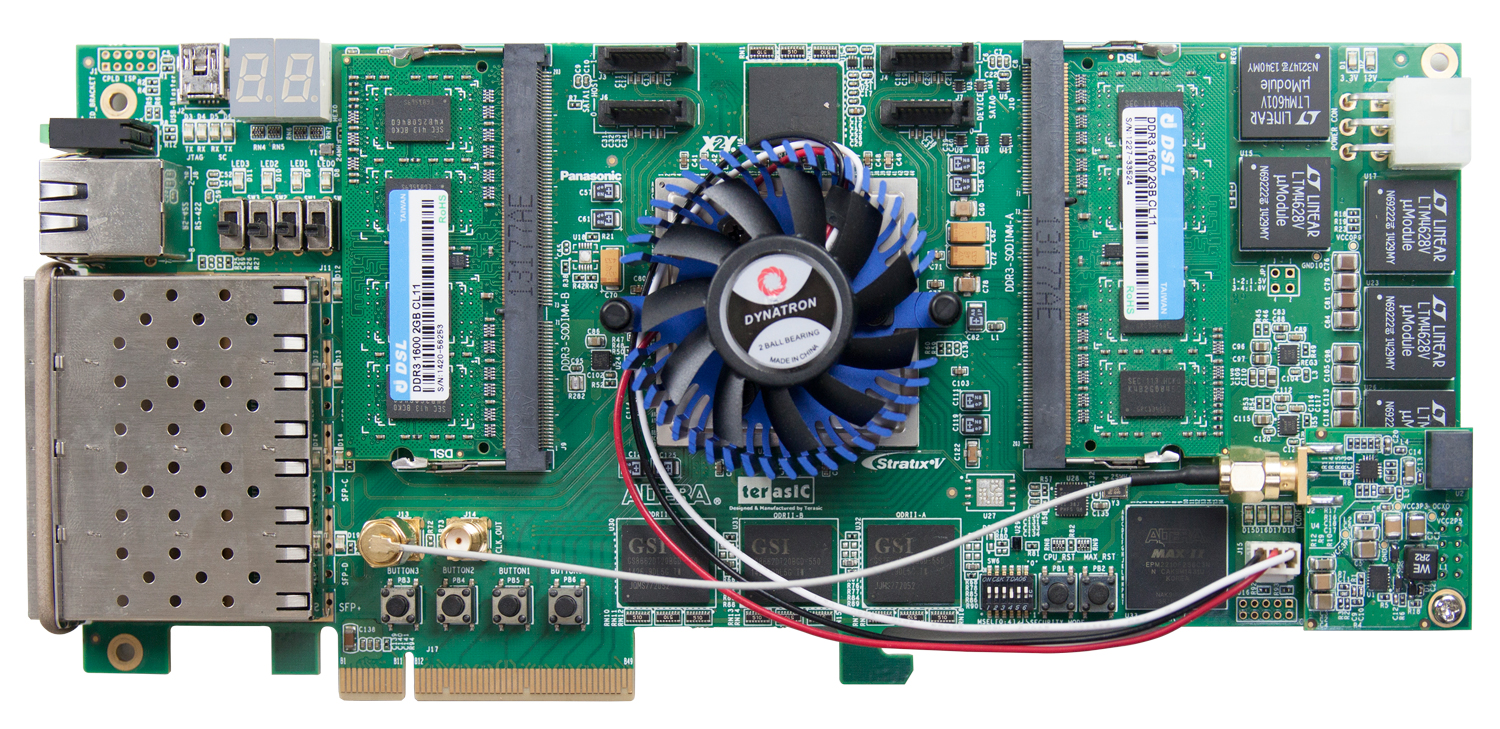

  • Top View

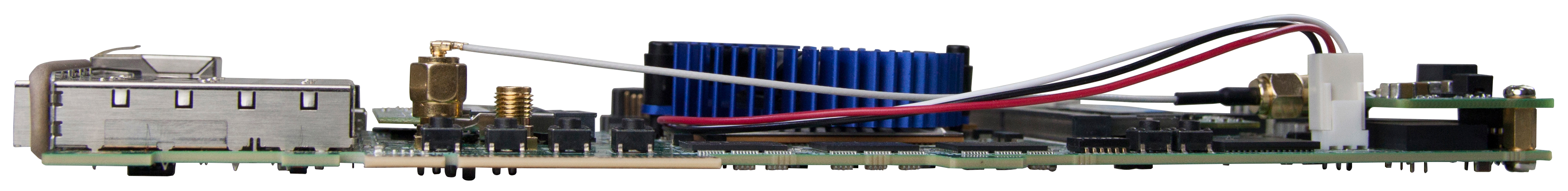

  • Front View





Overview Layout
