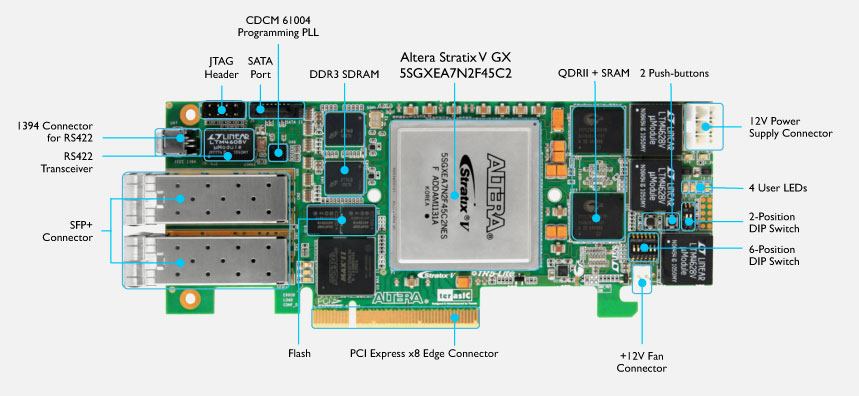

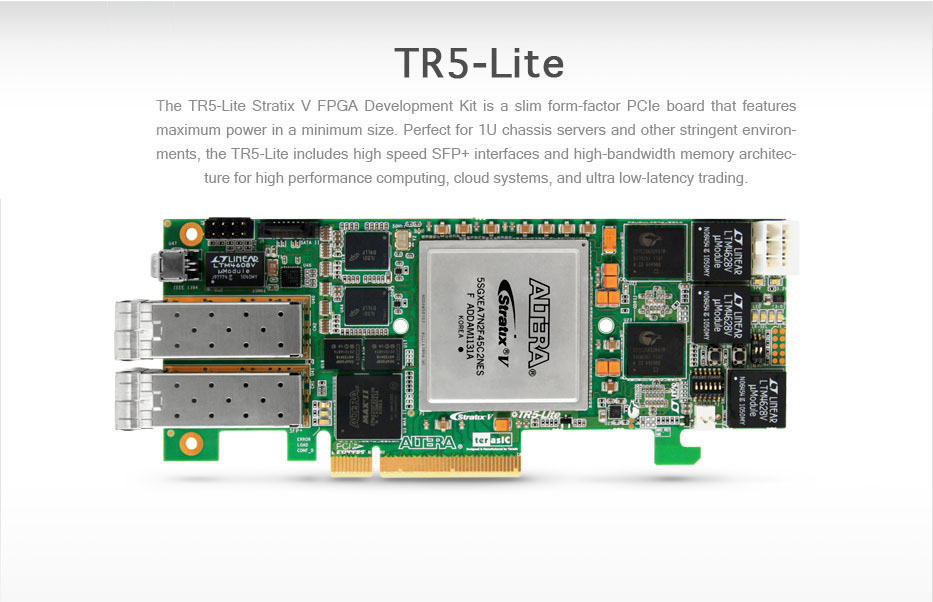

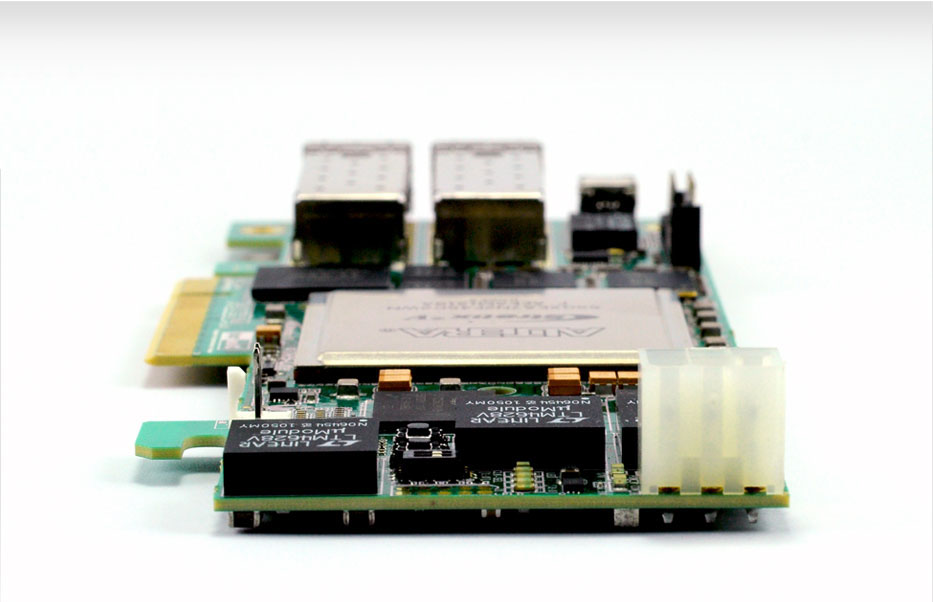

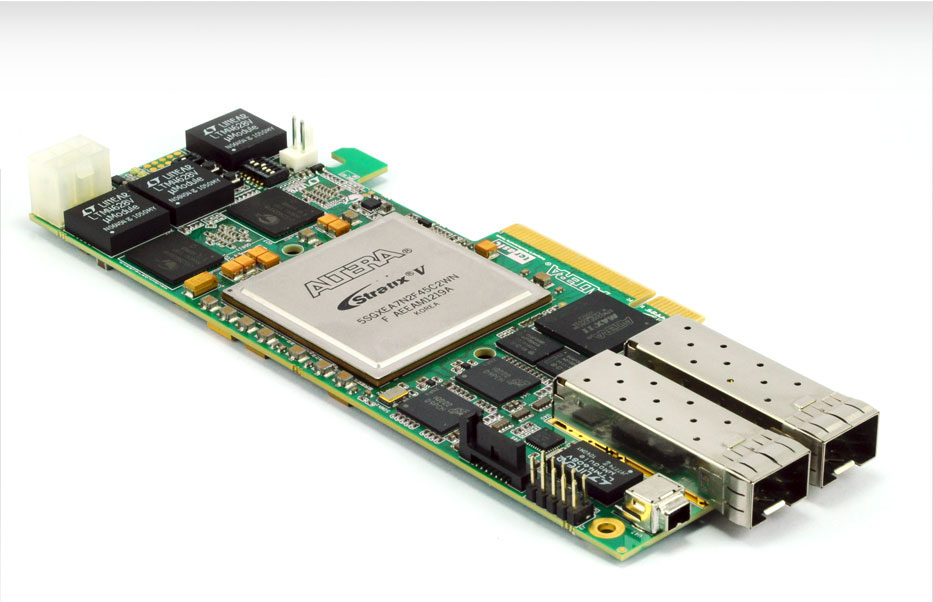

FPGA
Altera Stratix® V GX FPGA (5SGXEA7N2F45C2)
FPGA Configuration
JTAG header for FPGA programming
Fast passive parallel (FPPx32) configuration via MAX II CPLD and flash memory
General user input / output:
4 LEDs
1 LED Array
2 push-buttons
2-position DIP switch
|
On-Board Clock
50MHz Oscillator
Programmable oscillators Si570 and CDCM61004
Memory
DDR3 SDRAM
QDRII+ SRAM
FLASH
Communication Ports

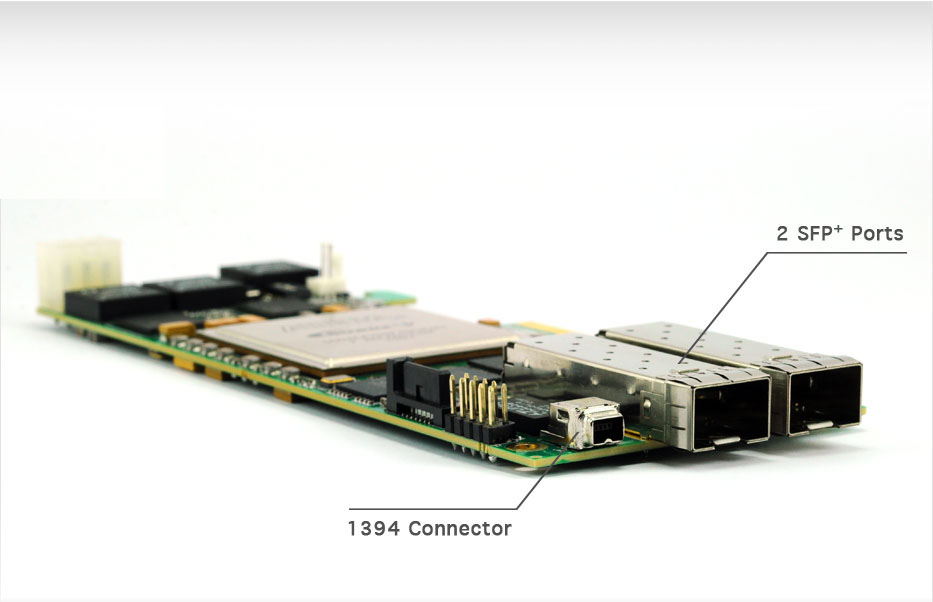

Two SFP+ connectors
One Serial ATA (SATA II) host port
PCI Express (PCIe) x8 edge connector
One RS422 transceiver with 1394 connector
|
System Monitor and Control
Temperature sensor
Fan control
Power
PCI Express 6-pin power connector, 12V DC Input
PCI Express edge connector power

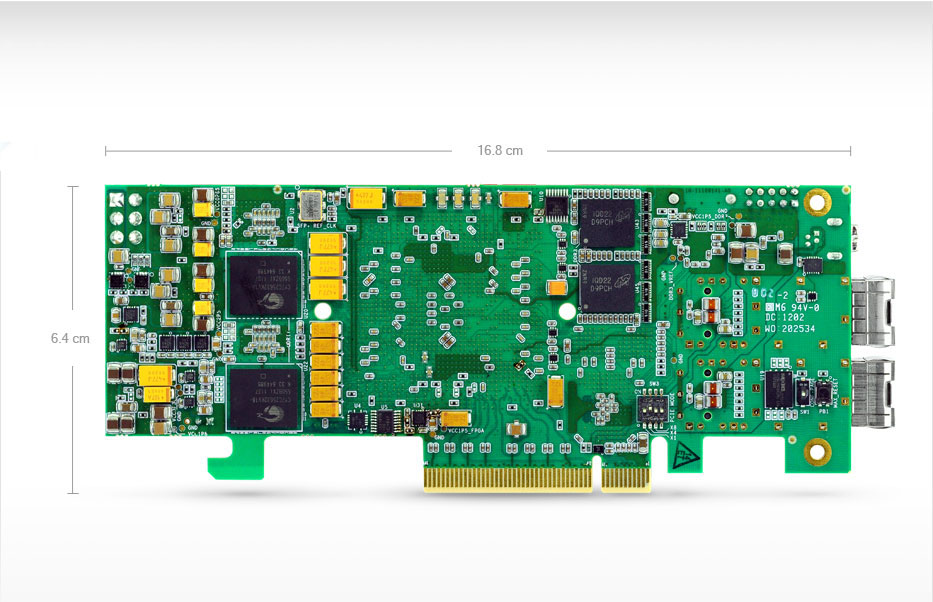

Mechanical Specification
PCI Express low-profile and half-length
|
